Galaxy Compact R20-11N

Product Description

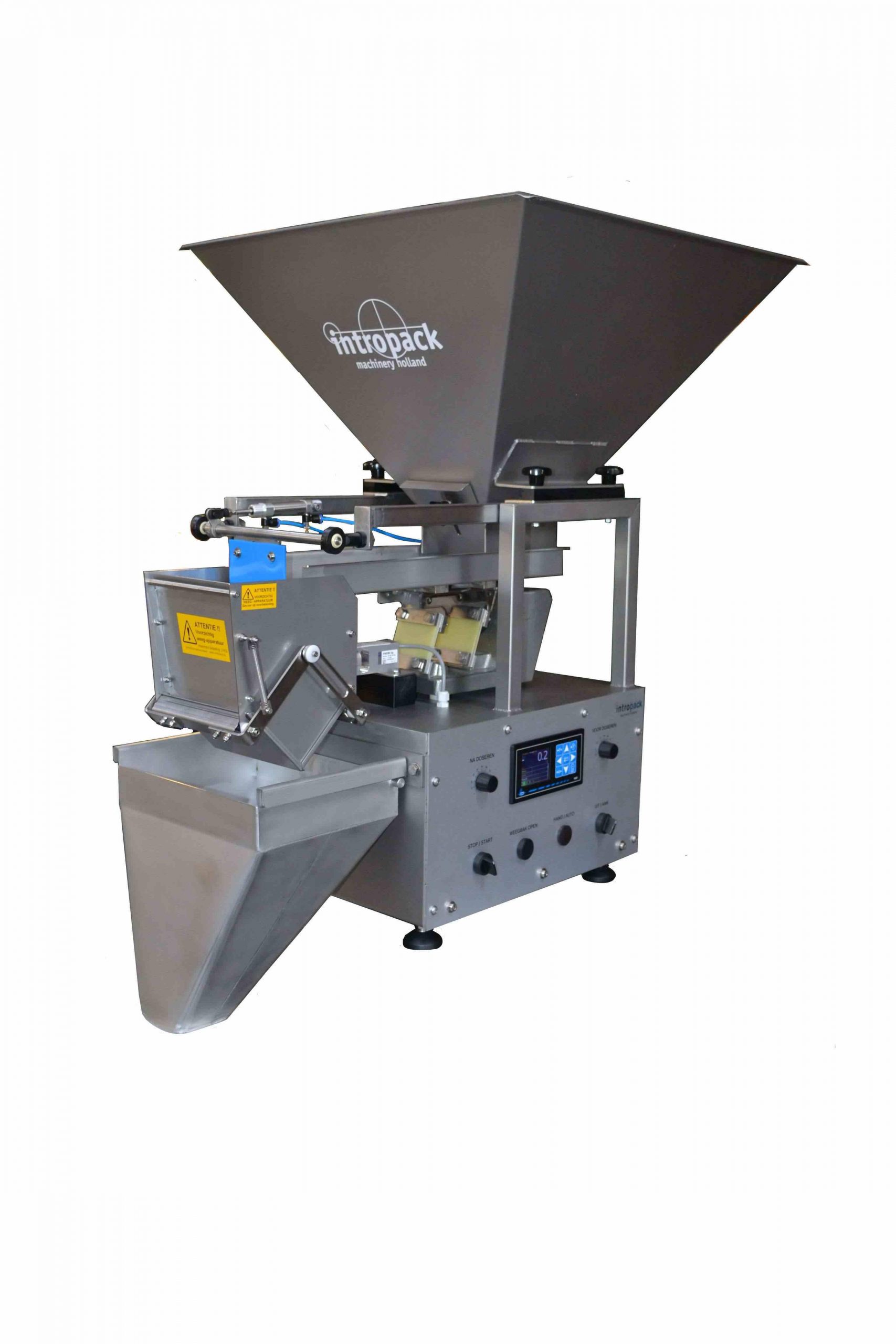

GALAXY COMPACT R20-11N
BRAND: Galaxy Compact
TYPE: R20-11N
CATAGORY: Weigher
WEIGHING RANGE: 10 – 2000 gram
POWER SUPPLY: 230 Volt & compressed air
CAPACITEIT: Until max. 15/20 p/min
DIMENSIONS: (LxWxH) 700 x 400 x 1050 mm

DETAILS:
When the supply hopper is filled product, the product is dosed, by an electromagnetic driven vibrating gutter, towards the scale.
A keyboard with digital color display controls the weighing cycle of the machine. The product is dosed to the scale in two stages (pre-dosing & fine dosing) which separately can be set.
After the set point weight has been reached, the vibrating gutter stops and the scale can be opened manually or automatically.

The construction of this machine makes it possible to fill most of the free flowing products in condition of powder or granulates. But also chemical / pharmaceutical products and other food and non food products can be filled like pills, coated tablets, (coffee)beans, rice, eg., and further all kinds of metal or synthetic materials. The weighing system can be synchronized with packing machines or conveyor belts.

Features:
-P.L.C. controlled and easy to operate
-Standard MASTER / SLAVE control for second weigh machine
-Compact dimensions
-Deliverable in various models

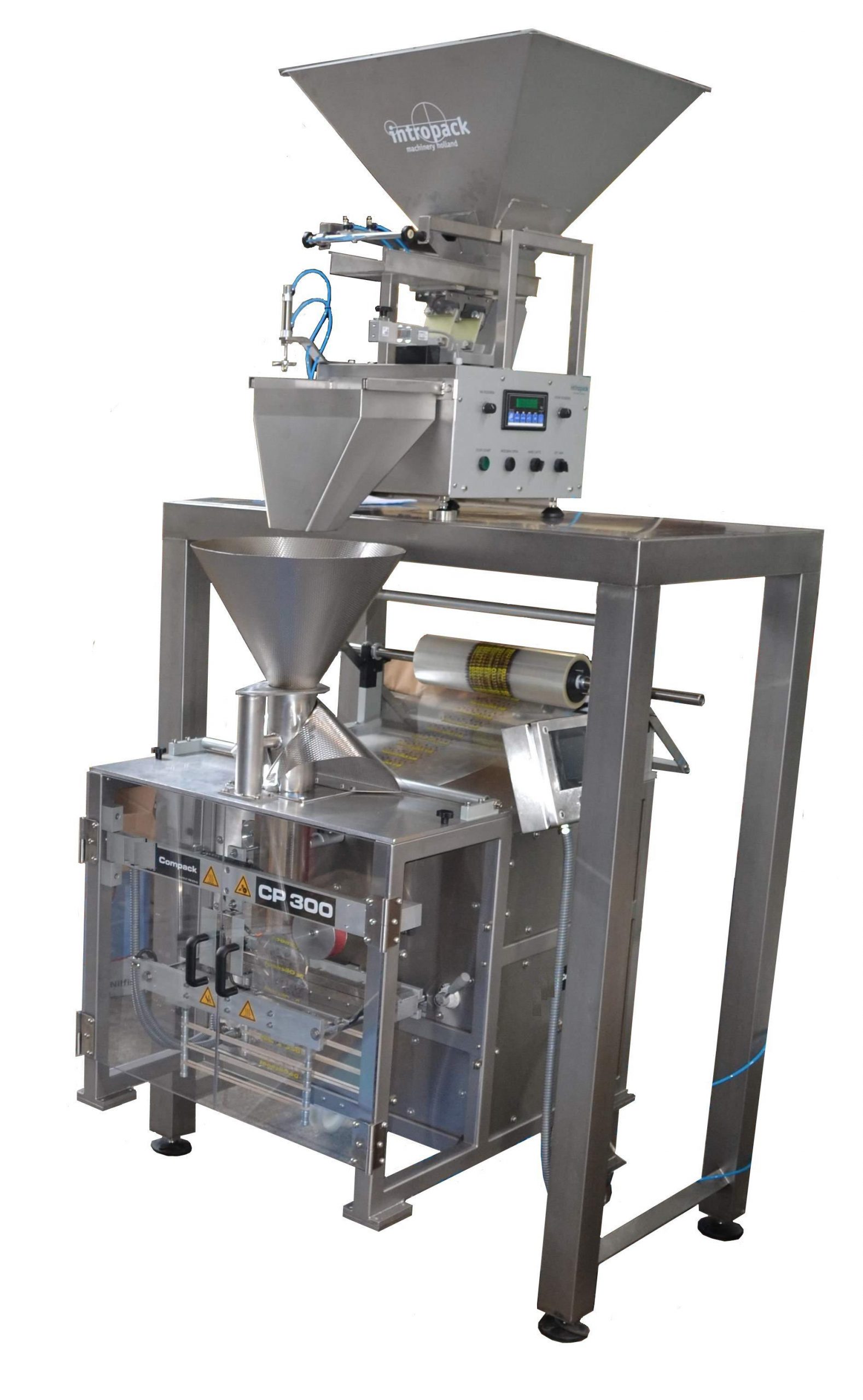

-Suitable for manual operation or automatic operation (with a packaging machine).
-4 liter or 2,5 liter weighing bucket
-Compact stainless steel frame (can be placed on machine or regular table)

Click underneed stated video:
