Unipack UP350

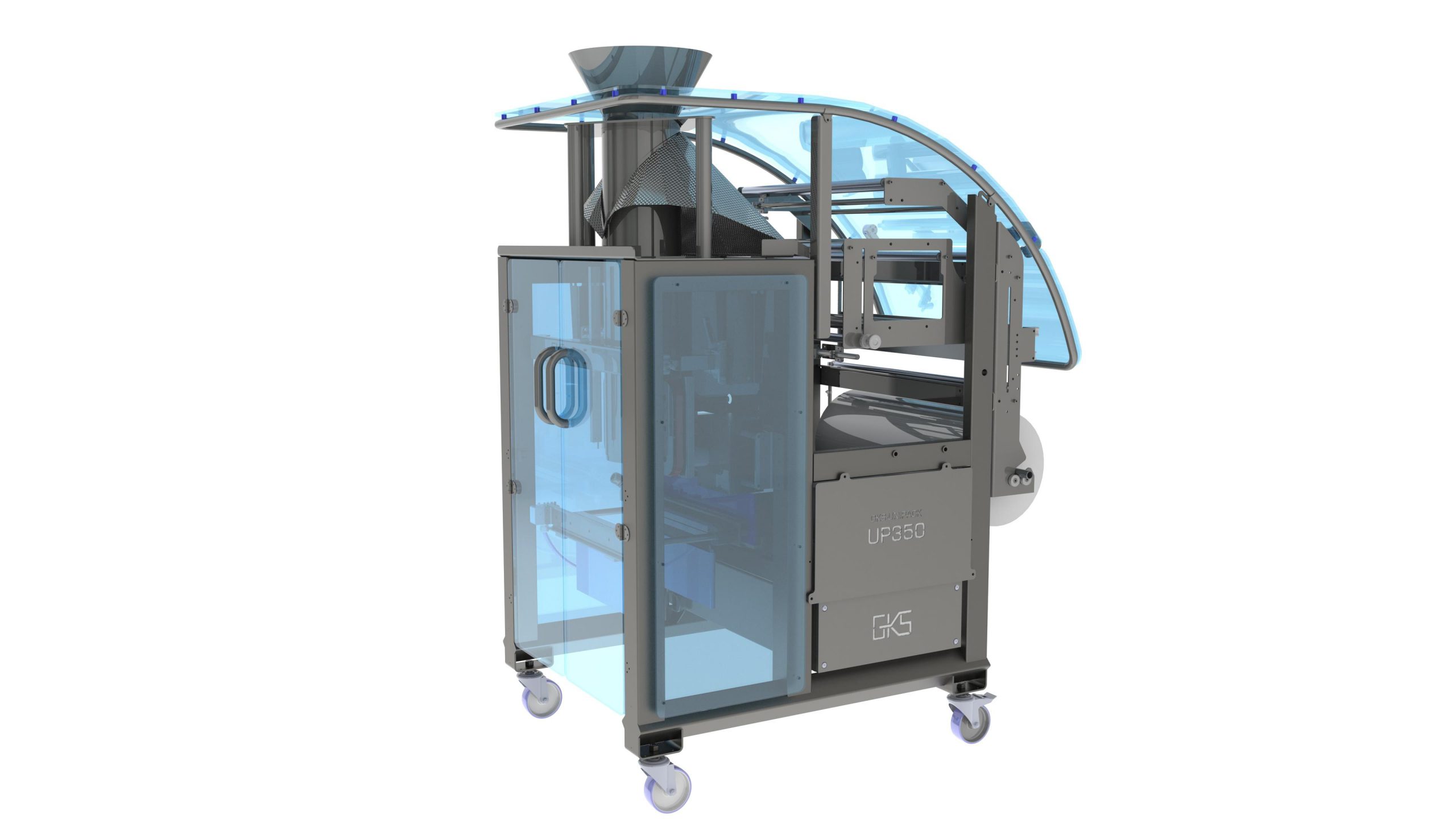

UP350 tekening vrij

Unipack UP350

Product Description



Unipack UP350
BRAND: Unipack
TYPE: UP350
CATAGORY: V.F.F.S.
FORMAT: Bag width: 75-350 mm
Length: unlimited
CAPACITY: 50 bags/min
POWER SUPPLY: 230 Volts, 50/60Hz.
DIMENSIONS: 1.495 x 962 x 1.999 mm (LxWxH)



DETAILS:
Vertical, form, fill en seal machines transform flat film into a bag by using a specially designed former set. The machines offers you the opportunity to either fill the bag by hand or to simply connect the machine with an automatic weigh or dosing system for a complete automated packing solution. Once the bag is filled the machine seals and cuts the bag automatically. The Unipack UP350 can pack any type of free flowing product, food or non food.

The Unipack UP 350 has a hygienic design and is constructed out of stainless steel. This results in a high build quality. The machine is equipped with a servo driven film transport and with Allen Bradley electrical components. Through its open and accessible construction, the machine is easy to clean and to maintain. Therefore the machine is very suitable for applications in the food industry.

Features:
-Stainless steel Ainsi 304 construction
– Machine safety according to CE regulations
– Hygienic design
– Allen Bradley PLC
– 7” full color touchscreen with intuitivecontrols and 99 programs can be created and stored
– Photocell for bag length detection with preprintedfilm
– End of film detection
– Pneumatic opening and closing of the servodriven film pull belts
– Ergonomic film support with pull offmechanism, film tensioning and brake
– Low power and air consumption
– Air press unit
– Cover plate over the entire machine
– Mobile machine frame

Additional Information

Merk

Unipack
