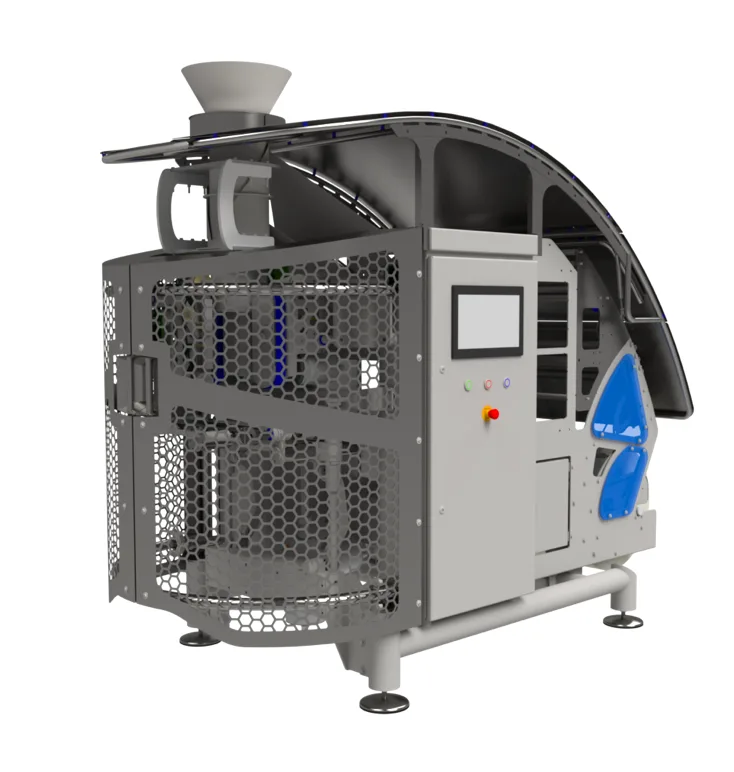

The FLOW combines a unique hygienic design, all-stainless steel construction, high packaging speeds and user-friendly operation. The FLOW is specially designed for packing high-capacity products.
The machines have an integrated touchscreen allowing easy operation and control. The machine can be fully washed on the outside and inside of the frame and has an IP rating of IP67 for the entire machine and IP69K on the servomotors.
Features
- EHEDG; stainless steel; hygienic design
- Modular construction
- High IP rating; IP67 throughout the machine with IP69 servo motors
- Lenze PLC control and servo drives
- RVS Groschopp servo motors IP69K for sealing jaws, length film roll drive and film drive
- Photocell for bag length detection with pre-printed film
- End of film detection
- Ergonomic film support with motorized drive and pneumatically locked axle
- 15,4" full color touch screen
- Low power and air consumption
- Film transport by means of vacuum conveyors
- Pneumatic film roll axle
Specifications
- Bag width (pillow)
- 70 - 350 mm
- Max. bag length
- Unlimited mm
- Max. production speed
- 140 bags/min
- Film thickness
- 25 - 130 ยต
- Core diameter
- 76 mm (3")
- Max. film width
- 740 mm
- Max. outer diameter film roll
- 600 mm
- Voltage
- 230 V, 50 Hz, 32A
- Power during production
- 1,800 Watt
- Air consumption
- 6 bar, 150 l/min
- Dimensions
- 2340 x 1430 x 2140 mm (D x W x H)
